612 Model Modular Floating Dock System
It's time to replace your dock with a quality floating dock system from Hotwoods.

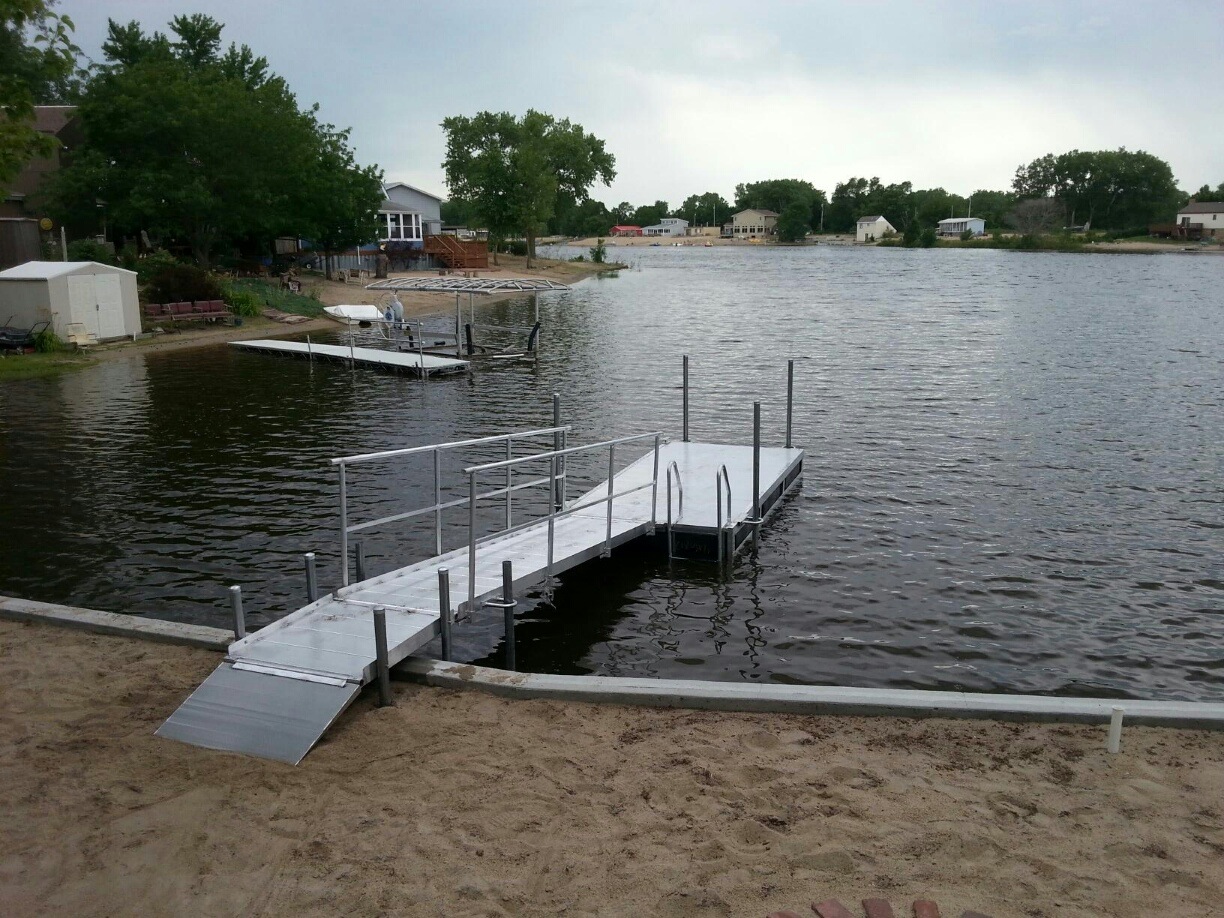

Above is our 12’ walkway with seawall bridging, along with a bridge threshold ramp and a ladder. This seawall bridge and entry threshold ramp was designed by Hotwood’s to get over sea walls like the one pictured above. Our seawall bridge is a very safe and clean way to enter your walkway when walking to and from your dock.
-
Our smaller 6’ x 12’ Dock System has a 3’ wide walkway and can be manufactured with either 8’, 12’, or 16’ standard lengths, although many measurements are customizable. This all-aluminum dock system is guaranteed to last lifetimes, and all of the stainless steel hardware ensures years without corrosion. This is the ultimate maintenance-free dock system you will ever own.
-
– All aluminum with stainless steel hardware.
– 3’ wide walkway with 8’, 12’, or 16’ standard lengths
– Dock Measurements: 6’ x 12’
_ Dock plank material = 6063 T5 Alloy .100 wall / All dock angle material 6065 T5 Alloy 1/8”
– 1/8” wall capsolated styrene-filled polyethylene floats feature a 12-year warranty
– Styrene-filled polyethylene floats offer 5,670 lbs. of buoyancy
– Poles sold separately, as dock installs vary
– Walkway can be connected to end of the dock as shown, or to the side to create a T-shaped dock
– Aluminum Handrails ( 1 1/2” dia. x .80 wall tubing. )
– Standard walkways include handrails on both sides
– Handrails are not standard on any dock, but they can be custom ordered to fit your needs
-
*Pricing does not include shipping
612 Aluminum Dock (6’ x 12’) with 8’ Walkway $5,400.00
612 Aluminum Dock (6’ x 12’) with 12’ Walkway $,5850.00
612 Aluminum Dock (6’ x 12’) with 16’ Walkway $6,300.00
*Contractors and Developers who wish to order multiple units at volume discounts are welcome.

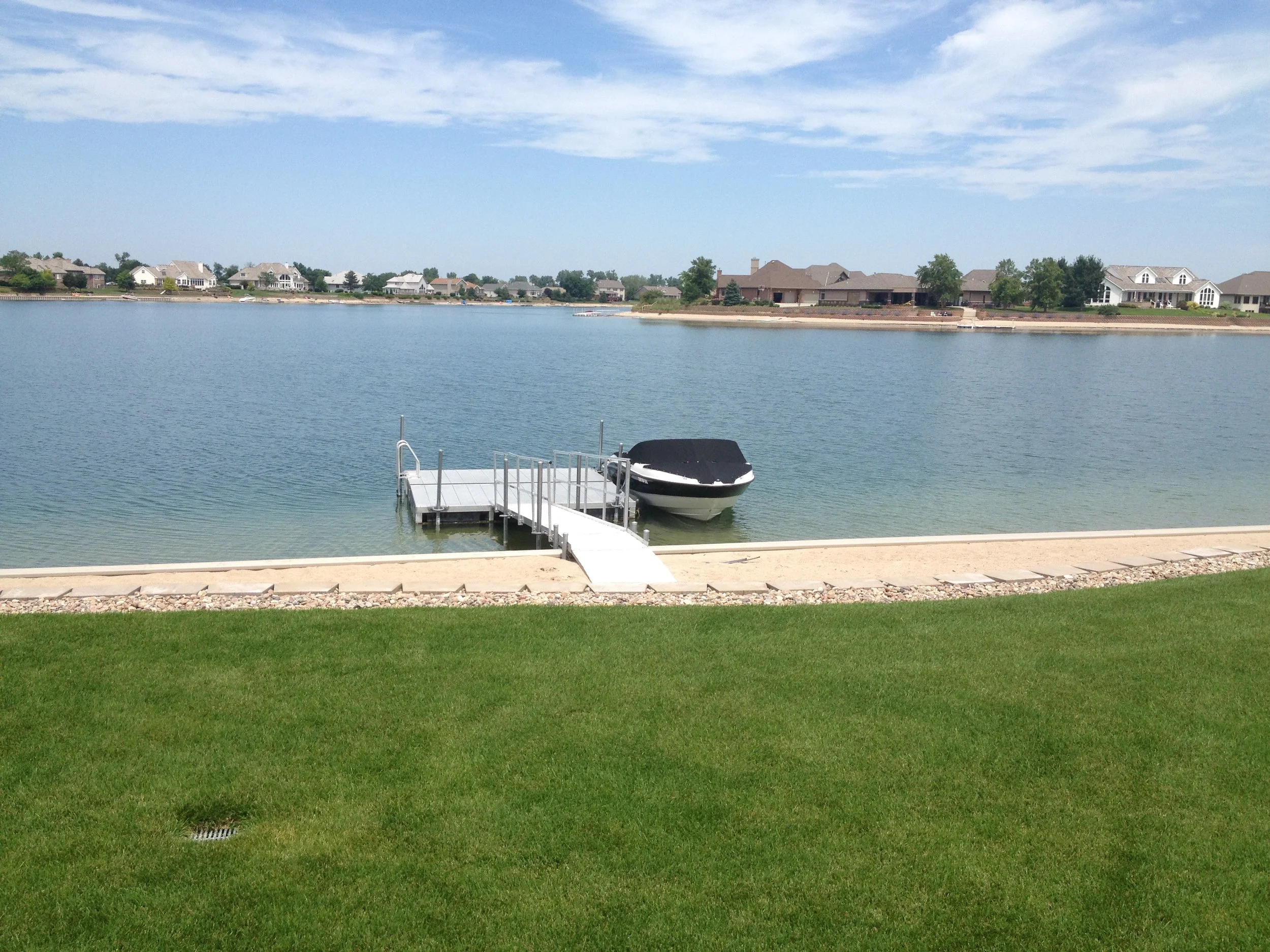

Hotwood's all-aluminum 612 Dock with 12’ walkway shown above with a Hotwood's Fish-N-Sport pontoon boat on the opposite side. As you can see, this dock is an extremely maintenance-free system that leaves the customer with 100% satisfaction.
➔ The 612 Modular Dock System ships completely assembled, with only the walkway and handrails to be installed
➔ The average install can be completed in 3-4 hours, depending on the shoreline and how well it is prepared for the person installing
➔ Our docks are also easy to remove for winter storage if you live in an area that requires you to remove them during that time of the year
➔ Simply remove the stabilizing posts and bring your dock in to the shore for the winter
This Guide of Mahoney Outdoors out of Missouri along with his customers, show the success of a good day fishing with their catch displayed on a Hotwood’s 612 aluminum dock.

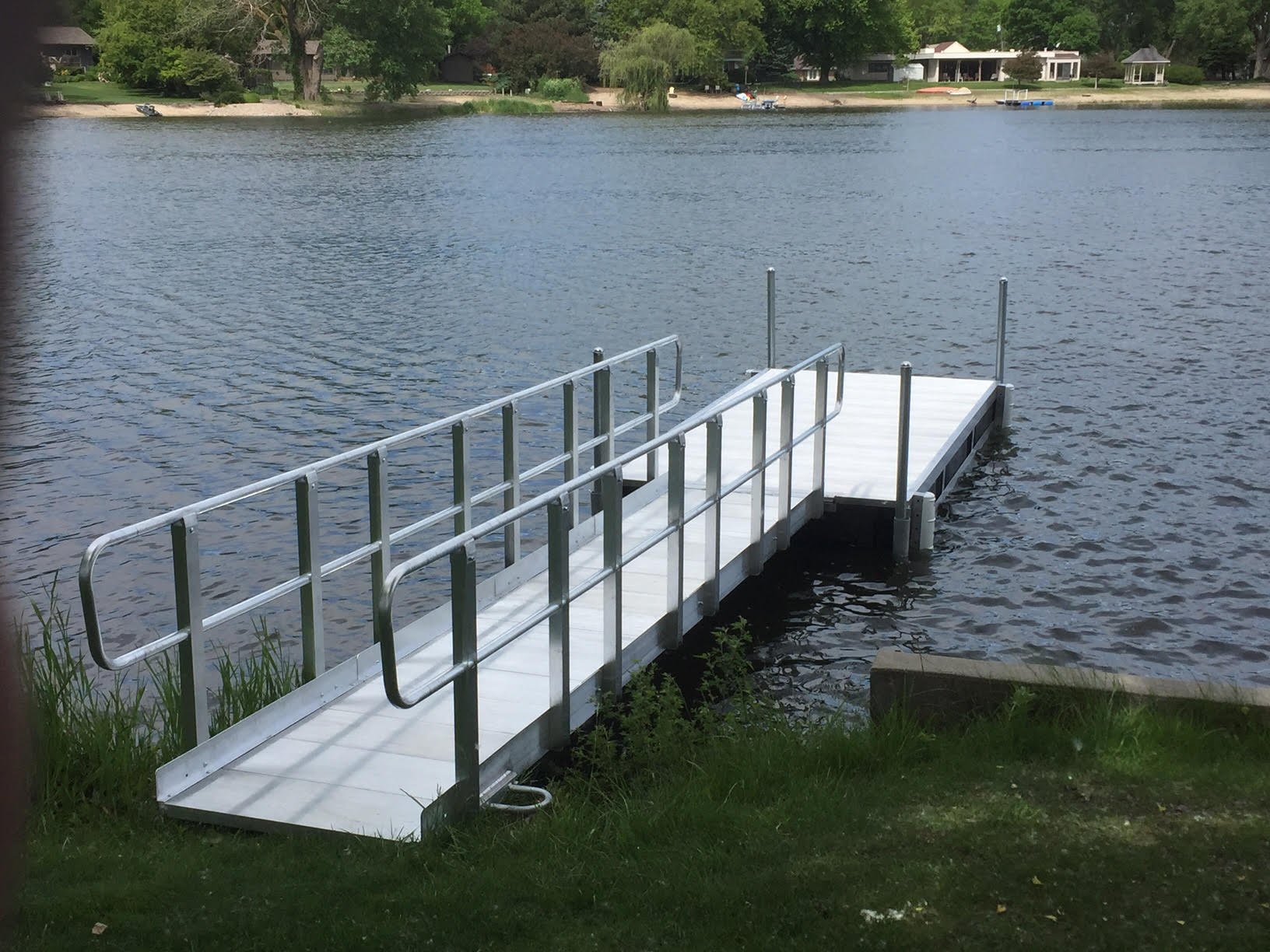

612 dock with a 12’ walkway.
We manufacture replacement walkways for any dock. Standard lengths are 8', 12', & 16'. Custom lengths can be made as well as custom attachments to docks & shoreline.
Shown above: two 612 docks combined to create a 12’ x 12’ dock with a 16’ walkway and seawall bridge.
Shown above: the 612 Dock with a customer walkway with a roller kit installed on walkway. This lets the dock easily move up and down with water levels while keeping your walkway and dock connected.
