816 Model Modular Floating Dock System
It's time to replace your dock with a quality floating dock system from Hotwoods.

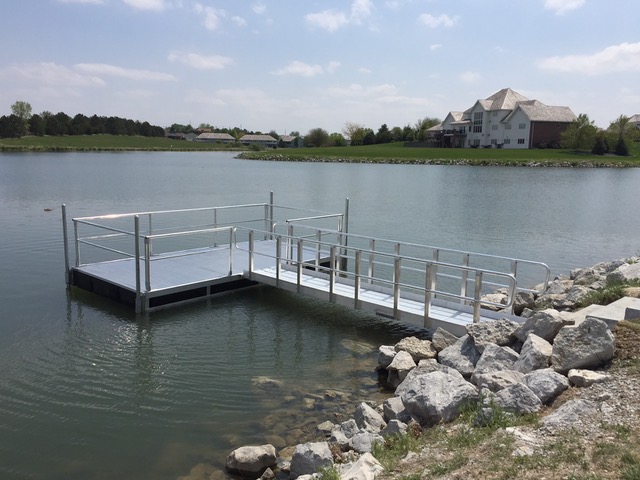

816 dock shown with 16' walkway and custom handrails on the dock.
*This customer had concrete steps installed in shoreline, prior to dock installation.
-
Our larger 8’ x 16’ Dock System has a 3’ wide walkway and can be manufactured with either 8’, 12’, or 16’ standard lengths, although many measurements are customizable. This all-aluminum dock system is guaranteed to last lifetimes, and all of the stainless steel hardware ensures years without corrosion. This is the ultimate maintenance-free dock system you will ever own.
-
– All aluminum with stainless steel hardware
– 3’ wide walkway with 8’, 12’, or 16’ standard lengths
– Dock Platform Measurements: 8’ x 16’
_ Dock plank material = 6063 T5 Alloy .100 wall / All dock angle material 6065 T5 Alloy 1/8”
– 1/8” wall capsulated styrene-filled polyethylene floats feature a 12-year warranty
– Extremely durable polyethylene floats with 7,560 lbs. of buoyancy
– Aluminum Handrails ( 1 1/2” dia. x .80 wall tubing )
– Standard walkways include handrails on both sides
– Handrail is not standard on the dock, but docks can be custom ordered with handrails to fit your needs
-
*Pricing does not include shipping
816 Aluminum Dock (8’ x 16’) with 8’ Walkway $8225.00
816 Aluminum Dock (8’ x 16’) with 12’ Walkway $8700.00
816 Aluminum Dock (8’ x 16’) with 16’ Walkway $9150.00

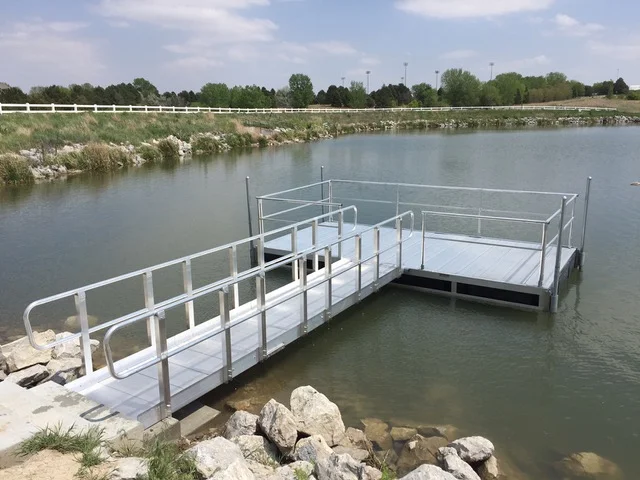

816 Dock above shown with optional partial handrails and 12' walkway.

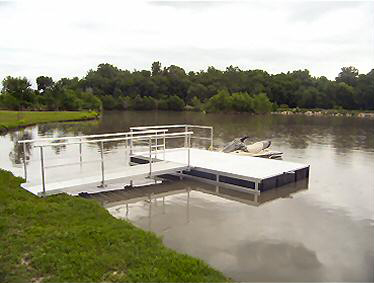

The dock serves as a great anchor point for jet skis or boats.
➔ The 816 Modular Dock System ships completely assembled, with only the walkway and handrails to be installed
➔ The average install can be completed in 3-4 hours, depending on your shoreline and how well it is prepared for the person installing
➔ Our docks are also easy to remove for winter storage if you live in an area that requires you to remove them during that time of the year.
➔ Simply remove the stabilizing posts and bring your dock in to the shore for the winter
Shown above: two 816 Docks bolted together to create a 16’ x 16’ dock with a 32’ walkway, using two 16’ walkways connected near the walkway float. Also included is the 3’ threshold entry ramp on the walkway.

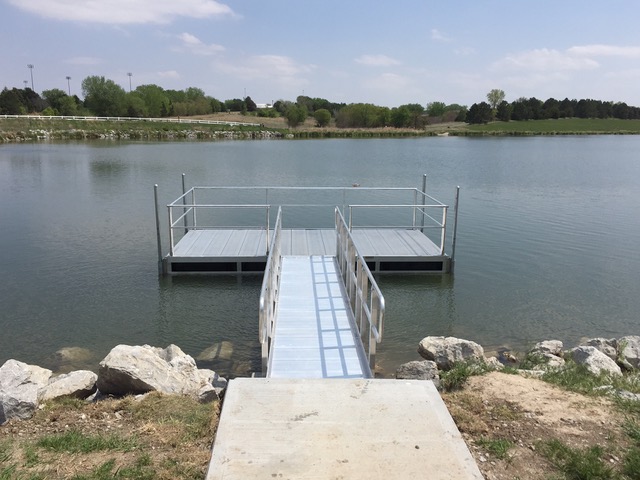

Shown above: 816 Dock with 8’ walkway and seawall bridge, along with a very happy customer.
Interested in an 816 Dock System?
Call Hotwood’s Today!
When you call Hotwood’s, you’ll get a live voice immediately that is ready to help you with any situation. From the best possible way to deliver your purchase, to saving you any way we can, we will build a working relationship that will last for years.
