Hotwood’s Honda Gas-Powered Wire Winder
-

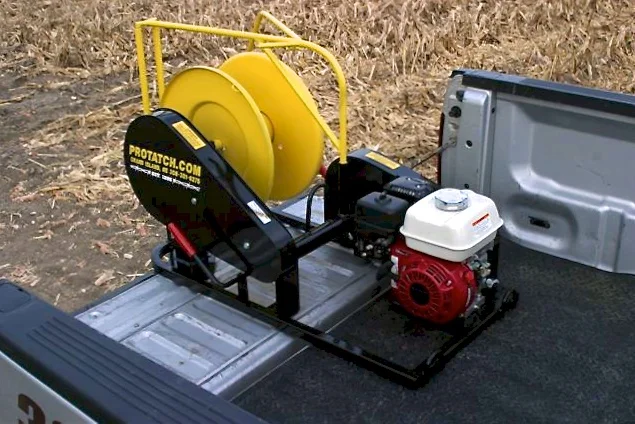

This unit comes complete with the all-steel roller guide arm shown above to keep you at a safe working distance while guiding the wire on the reel. The handle can be mounted on either side of the unit to fit the customer’s needs.
-
– Reliable 5.5 HP Honda pull start gas engine.
– Motor Carries a 3-Year Warranty Through Honda
– All-Steel Roller Guide Arm Keeps You at a Safe Working Distance While Guiding the Wire on the Reel
– Clutch Can be Operated from Either Side
– Removable Shields on Both the Belt Drive and the Chain Drive. Only remove to service unit. Always have shields in place before operating this unit.
– Standard with Manual Wire Guide
– Tie-Off Hooks Secure Winder to Truck or Trailer When Rolling Wire
– Lift Hook Located Centrally on the Machine to Use if Needed to Load
– Standard Yellow Split Reel is Designed to be Used Over and Over. High tensile and solid reels can be ordered as options.
– Reel Designed with 4 Tie Wire Points to Place Tie Wires in Before Rolling Wire
– Use 10-30 Motor Oil & Service on Regular Basis
– Ships Dry Only (We Cannot Ship with Oil in the Crankcase)
-
*Pricing does not include shipping
Gas-Powered Winder- $1,908.00
YSS-1 Yellow Split Spool Only- $286.00
HTR-1High Tensile Reel Only- $491.00
NOTE: Always have your winder secured to the pickup with the 2 tie-off loops located on the front cross member of the wire winder frame. This can be done by straps or chains connected to the interior hooks of your pickup box. This will prevent the unit from pulling itself off the back of the pickup while rolling wire.
The Gas Powered Wire Winder comes standard with the Orange Flat Reel Washer and Guide Arm. If you have an old Gas Wire Winder and you’d like to buy a new Orange Flat Reel Washer or Guide Arm, call (877) 407-8645 today!
After you service your new gas-powered winder and it is ready to use for the first time, you may need to adjust the motor on the motor mount base to the right tension on the belt, as it takes a while to season the belt and get the best performance from your new winder.
The standard yellow split reel is the same reel we use on all our winders. However, you can use the high tensile reel or any of our solid reels on this unit. The high tensile or solid reels can be ordered as options when purchasing your gas-powered unit.

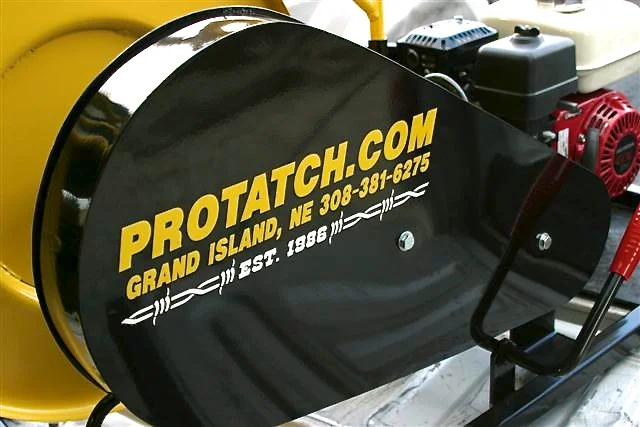

The photo to the left shows the all-steel removable chain guard. This needs to be removed in order to oil and service the chain.
NOTE: Never operate the Gas Powered Wire Winder, without all guards in place at all times.
Replacing the V-Belt

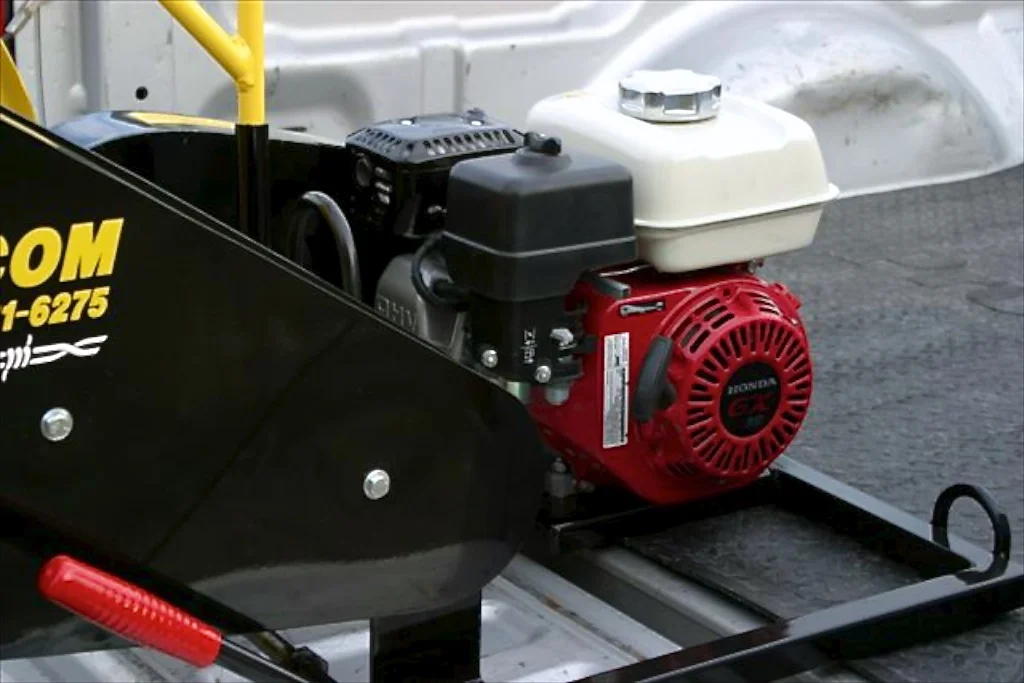

When replacing the v-belt, always make sure the belt is under and above the 2 finger belt guide on the front of the engine pulley as shown to the left. If belt is not inside those 2 finger tines, it will be destroyed when the machine is in motion. This finger tine bracket was designed to keep the belt in position when machine is in neutral.
Note: Number on Belt is B47 Continental HY-T Plus.
Don’t Forget to Checkout our New Universal Wire Unroller!
-
Not only is our Universal Wire Unroller built to last, but it also has multiple mounting options so it can be used on the receiver of a pickup or mounted on the 3 point tool bar or your Hotwood’s winder. The unroller is easy to load—just fold the weight or resistance plate up out of the way, take the yellow spool carrier out of the frame, and split the two yellow spool carriers apart. Those are telescoping into each other. This allows you to put them through the center of the roll of new wire or any fitting reel. Place the roll back in the frame, lower the yellow resistance plate down on the reel, and you are ready to unroll wire. All-steel manufacturing made right here in the USA.
-
*Pricing does not include shipping
Optional Universal Wire Unroller $389.00
UPS Shippable
Unroller shown mounted on pickup via 2” receiver hitch and one of our solid spools with resistance or brake plate being lowered in place. This plate will sit on top of the roll of wire as it pays out, keeping the roll from free spooling if you have to stop. The 2” receiver tube is long enough to give clearance for the tailgate to be in the down position while rolling out wire. The 5/8’’ shaft that protrudes outside the main frame through each side of the unroller is to be used as handles while lifting your reels in and out of the machine. The telescoping yellow circle plates are welded and slide together through our solid reels or a new roll of wire, barbed or smooth.
Yellow two-piece telescoping reel carrier being lowered into place on the right. This is the carrier you would put between any of our solid spools or a new roll of wire, barbed or smooth.
Explore our Other Gas Winder Accessories!
Solid Reels
Small Roll #9 Wire
-
How many farmers and ranchers have a tangled pile of #9 wire in the back of their truck? It started out as a nice and tight 36’’ roll, but what happened? After untangling everything I ever needed in the back of the pickup when I was growing up on the farm, I decided it was time to offer a small roll of life-saver #9 wire that can be put in any toolbox, or even under the seat in your truck.
-
– Usable Wire Per Roll: 63’
– Weight Per Roll: 4lbs.
– Extremely Handy and Easy to Use
-
*Pricing does not include shipping
Small Roll #9 Wire (4 lbs.) $22.00
UPS Shippable
Jimmy McElroy (left) from Morganfield, KY, and Fred Adams (right) from Readyville, TN drove through Grand Island and stopped to pick up a new Honda Gas-Powered Wire Winder. After a great visit, they were on their way back home to use their new winder.
Weather it is stocking inventory or testing or winders as we did with engineers from Honda shown below, we will have what you need and take care of you in every way.
Interested in a Gas Winder?
Call Hotwood’s Today!
When you call Hotwood’s, you’ll get a live voice immediately that is ready to help you with any situation. From the best possible way to deliver your purchase, to saving you any way we can, we will build a working relationship that will last for years.
